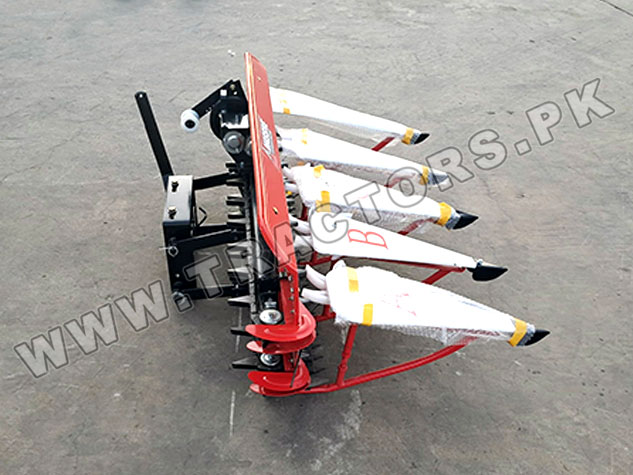

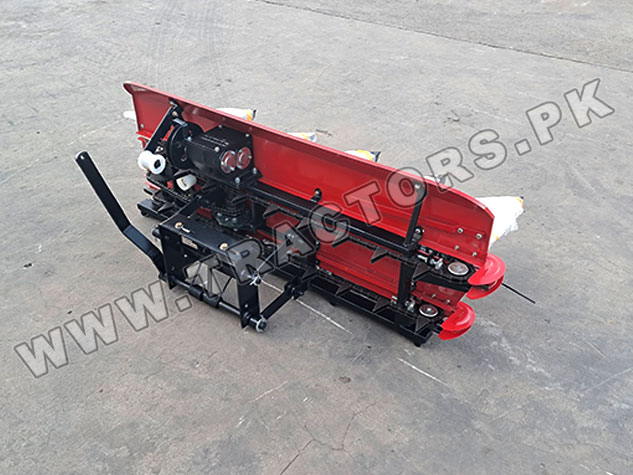

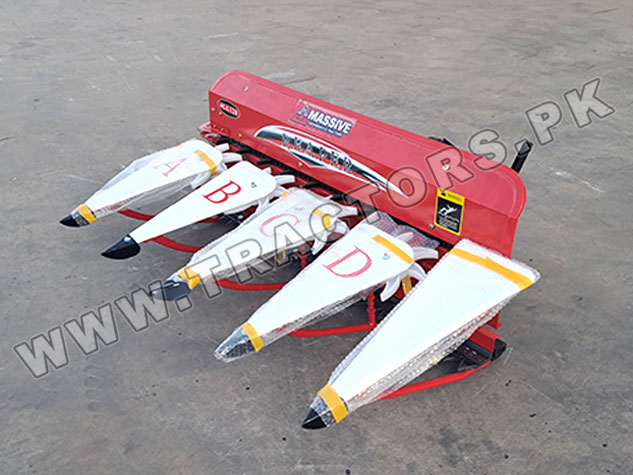

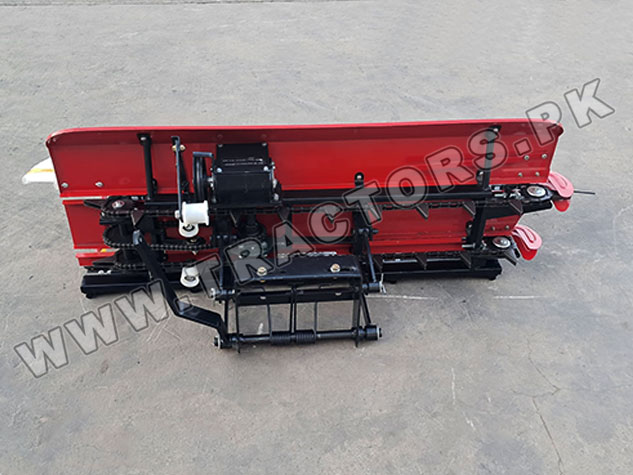

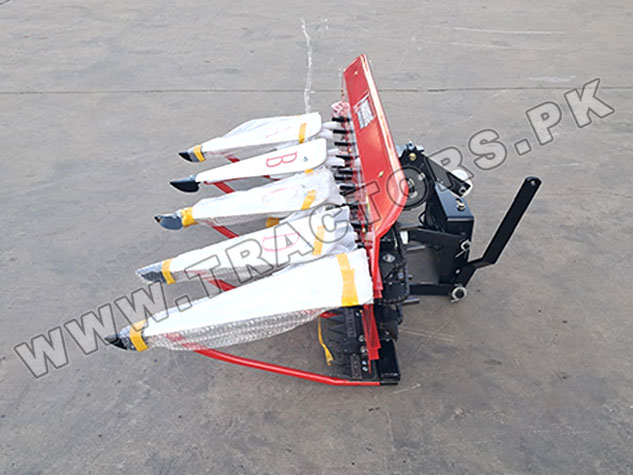

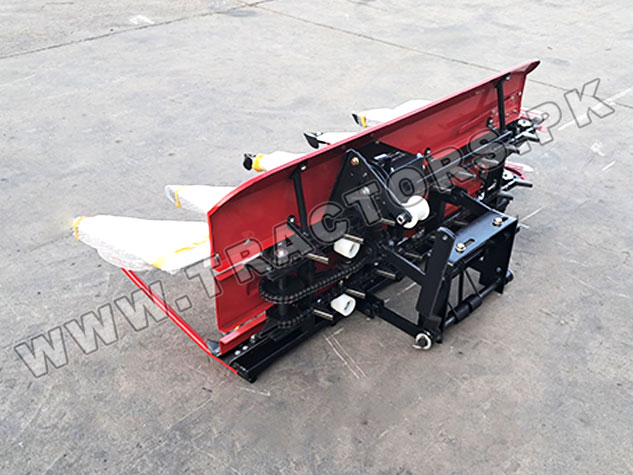

Reaper 1.2 Or 1.5

Reaper was specially designed for power tiller. It is featured by its simple and compact structure, good reliability, long service life, easy operation, light weight and high cutting efficiency. It is very suitable for working in wheat & rice field.

Advantage:

Reliability
Efficiency
Longevity
Ease of Use
Lightweight

Technical Specifications:

Specifications
Type of cutting table	Standing-type
Cutting Width	1200mm / 1500mm
Min cutting height	>50mm / >=30~50
Placing Type	Sidewise & Banded Placed
Productivity	2200-2600 M2/h
Matched diesel Power	12~20HP
Teeth Space	127mm
Running speed of crank	550r/min
Diameter of star wheel	280mm
Working speed	2.6 – 3.6 km/h
Chain speed	2.24 m/s
Number of operator	1
Overall dimensions	L 2200 x W 1600 x H 1100 mm
Total weight	215 KG / 230 KG
